Intermittent USB disconnects during force feedback spikes are one of the most frustrating issues in direct drive sim racing, and aluminum profile rigs can amplify the problem. When a high-torque servo motor rapidly changes direction or delivers a sudden jolt through the wheelbase, it generates electrostatic charge. Aluminum extrusions conduct that charge efficiently across the frame, but without a deliberate path to ground, the voltage has nowhere to go except through the next available conductor - often the shield or ground reference in your USB cables.
This is not a software, driver, or firmware issue. The disconnection happens at the electrical level: a transient voltage spike on the frame momentarily overwhelms the ground potential difference between your PC and peripherals, causing the USB controller to reset the device. You might see Device Descriptor Request Failed errors in Windows, or your wheelbase, pedals, or button boxes simply vanish from Device Manager mid-session and reappear seconds later.
Aluminum frames make the situation worse because they create a large, continuous conductive surface with no inherent earth reference. Unlike a wooden or steel rig bolted to a concrete floor, an isolated aluminum cockpit floats at whatever potential the motor and power supply impose on it. Every force feedback event becomes a static discharge opportunity, and because USB signaling operates at low voltage with tight tolerances, even small charge imbalances are enough to corrupt the connection.
Grounding your rig means giving that accumulated charge a low-resistance path to the same earth reference your PC and outlet share. Once the frame potential stabilizes, USB devices see consistent ground across all connections, and the disconnects stop.
Tools and Materials Needed for the Grounding Procedure
- 14 or 16 AWG green-yellow ground wire (length depends on rig-to-outlet distance, typically 3 - 5 meters)
- Ring terminals sized for your wire gauge and M5 or M6 mounting bolts
- Crimping tool or soldering iron and heat shrink tubing
- M5 or M6 stainless steel bolts, washers, and T-nuts compatible with your extrusion profile
- Wire stripper and side cutters
- Multimeter with continuity test function
Understanding Electrical Grounding and Static Discharge in Sim Racing Hardware
Electrical grounding creates a deliberate, low-resistance path that allows stray voltage to flow safely to earth or to a common reference point, preventing it from building up on metal surfaces. In a sim racing rig built from aluminum extrusion, static charge accumulates on the frame during operation - especially when a direct drive wheelbase motor spins and creates friction between internal components, brushes, and bearings. Without a grounding path, that charge has nowhere to go until it finds a route through the next available conductor, which is often the thin shield or ground wire inside a USB cable when you touch the wheel or shifter.
USB cables are particularly vulnerable because they rely on four or five small-gauge wires to carry both power and high-speed data signals. The data pairs - typically 28 AWG twisted wires - operate at low voltage and depend on a stable ground reference shared between your PC and each peripheral. When a static discharge travels through the cable shield or ground pin, it creates a momentary voltage spike that the USB controller interprets as a device removal, triggering the disconnect-reconnect chime in Windows. The problem intensifies with longer cable runs, daisy-chained hubs, and aluminum rigs that unify dozens of metal contact points into a single, ungrounded capacitor.
Grounding does not eliminate static generation - it provides a continuous drain so charge never reaches the threshold that causes a disruptive spark. The goal is to bond every metal component to a single grounding point, then connect that point to earth or to your PC's chassis ground, ensuring all parts of the rig share the same electrical potential. For most sim racers, this means running a heavy-gauge wire from the rig frame to the ground terminal of a nearby wall outlet or to the metal case of a desktop PC with a three-prong power supply.
Why Aluminum Profile Rigs and Direct Drive Wheels Are Prone to This Issue
Aluminum profile rigs carry electrical charge differently than the steel tube cockpits many sim racers upgrade from. Steel often makes incidental contact with mounting hardware, carpet fibers, or painted surfaces that provide a path to ground. Aluminum extrusion, by contrast, conducts readily but sits isolated when rubber feet lift every corner off the floor. That combination turns the entire frame into a floating conductor, and every component bolted to it shares the same electrical potential.
Direct drive wheelbases amplify the problem. Units rated at 15 Nm and higher draw substantially more current than belt or gear-driven wheels, and the servo motors inside reverse polarity dozens of times per second during force-feedback spikes. Each reversal can induce a small charge on the aluminum frame. When that charge has nowhere to go, it accumulates until a USB cable or peripheral provides the easiest route to ground - usually in the form of a brief disconnect that Windows logs as a device-removal event.
Rubber feet, powder coating, and anodized surfaces all act as insulators. Even a rig bolted to a wooden platform or sitting on vinyl flooring will remain electrically isolated unless you create a deliberate path. The higher the torque rating and the more devices you mount - button boxes, USB hubs, motion modules - the more likely you are to see random disconnections during hard braking or kerb strikes, because that is when current draw peaks and static discharge finds the first available exit.
Step-by-Step: How to Create and Attach a Grounding Wire to Your Rig
Creating a secure grounding connection starts with preparing the wire itself. Strip approximately half an inch of insulation from one end of your 14 AWG or 12 AWG stranded copper wire. Slide a ring terminal over the exposed copper, then crimp it firmly using a proper ratcheting crimper - a good crimp should require noticeable force to pull apart and show no visible gaps between the terminal barrel and the wire strands. If you prefer soldering, heat the terminal and wire together until solder flows into the barrel, then let it cool completely before handling.

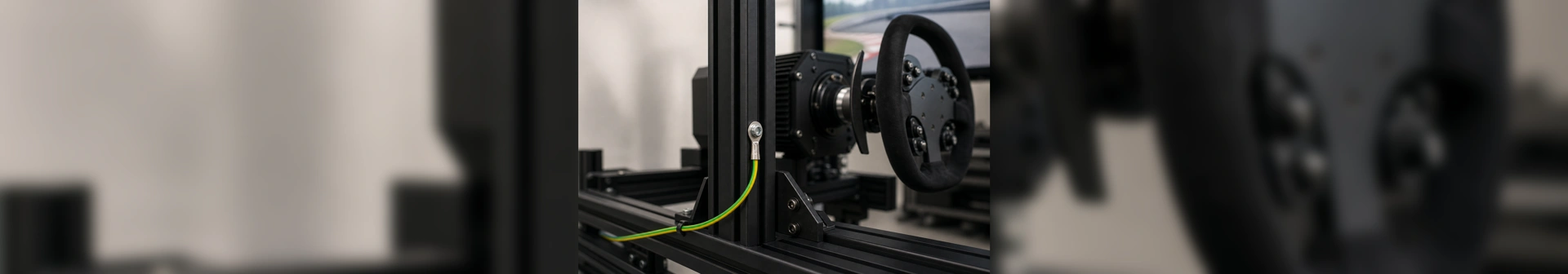

Select an attachment point on your aluminum extrusion frame close to the wheel base or pedal tray, since shorter wire runs reduce resistance and keep the path to ground as direct as possible. Most aluminum profile rigs use 4040 or 8020 extrusion with T-slot channels that accept M6 or M8 hardware. Insert a T-nut into the slot at your chosen location, then position the ring terminal over the T-nut hole.
Anodized or powder-coated aluminum acts as an insulator, so you need bare metal contact for effective grounding. Use a small wire brush, Scotch-Brite pad, or fine sandpaper to remove the anodizing or paint in a circle slightly larger than your washer. The exposed aluminum should appear shiny and silver, not dull or colored. Place a star washer or split lock washer under the ring terminal - the sharp teeth bite through any remaining oxidation and maintain pressure over time.
Thread an M6 or M8 bolt through the ring terminal, washer, and into the T-nut. Tighten the bolt with a hex key or socket wrench until the terminal is snug against the frame, but stop before you feel significant resistance. Aluminum threads strip easily, especially in T-nuts, so aim for firm contact rather than maximum torque. A quarter-turn past hand-tight is usually sufficient; if you have a torque wrench, 3 to 5 N·m works well for M6 hardware in aluminum extrusion. Give the wire a gentle tug - it should not rotate or slide under the bolt head.
Run the other end of the wire to your grounding point, whether that is an electrical outlet ground screw, a grounding rod, or a central ground bar. Keep the wire route tidy and away from moving pedals or wheel rotation, using cable ties or adhesive mounts to secure it along the frame. Check the connection every few months, since vibration from direct drive wheels can gradually loosen hardware over time.
Identifying the Best Grounding Points on Your Chassis and PC
The ground connection is only as good as the path it terminates on. Start with a dedicated ground screw on a grounded power strip or surge protector - most metal-cased models expose a green grounding screw on the back or side panel that already connects to the building's earth ground through the three-prong mains cable. This is the simplest, most reliable option for rigs on the second floor or in rooms without easy access to outdoor grounding stakes.
If your power strip lacks an accessible screw, locate an unpainted metal screw on your PC case, preferably one that threads directly into the PSU housing or the internal chassis frame near the power supply. Painted or anodized surfaces add resistance and break continuity, so scrape away coatings or use a star washer to bite through to bare metal. Verify the path by setting a multimeter to continuity mode - touch one probe to your chosen screw and the other to the ground pin of the PC's power plug. A beep confirms the circuit is complete; silence means you need a different attachment point.
For garage or dedicated sim rooms with concrete floors, a copper grounding rod driven eighteen to twenty-four inches into soil outside the nearest wall offers the lowest-impedance path. Attach a braided copper strap from the rod to your rig's profile using a stainless M6 bolt and star washer. This approach is overkill for apartment setups but works well in detached spaces where wall outlets may share circuits with high-draw tools. Avoid daisy-chaining your rig to another piece of ungrounded metal furniture or an isolated chassis - static has nowhere to dissipate, and you add inductance without solving the root problem.
Testing and Confirming the Grounding Solution
Once you've completed the physical grounding connections, confirming continuity and stability under load ensures the solution works reliably. Start by setting a digital multimeter to continuity or resistance mode - most models beep when the reading drops below 1 ohm, which indicates a solid electrical path.
Touch one probe to an unpainted section of your rig's aluminum profile and the other to the grounding point: either a screw on your PC's metal case, the center screw of a grounded AC outlet cover plate, or the grounding lug if you've installed a dedicated wire to your home's electrical ground. A good ground connection will show a resistance reading below 1 ohm. If the meter displays "OL" (open loop) or a value above 10 ohms, recheck each crimp, verify star washer contact with bare aluminum, and confirm the PC case itself is grounded through its power supply.
For the functional test, launch a high-force-feedback title such as iRacing or Assetto Corsa Competizione and run a 20-minute session with FFB strength at your usual setting - direct-drive wheels generate the most static during aggressive clipping or sudden direction changes. Before you start, open Windows Device Manager and expand the Universal Serial Bus controllers section, or use Event Viewer filtered to show Device Manager events. Leave both windows visible on a second monitor or check the logs immediately after the session ends.
If no disconnect events appear and your wheel, pedals, and button boxes remain stable throughout the run, the grounding path is working as intended. A successful test means the aluminum frame is now dissipating static charge faster than it can build to disruptive levels, and USB data lines stay within their noise margin. Any disconnects or yellow exclamation marks in Device Manager suggest either incomplete continuity - often caused by anodized contact points - or a problem elsewhere in the USB chain, such as an under-powered hub or a failing cable.
Repeat the multimeter check every few months, especially if you move the rig or swap components, because vibration can loosen hardware over time and reintroduce resistance into the ground path.
Advanced Tips: Ferrite Cores and Shielded USB Cables
Some aluminum sim rigs continue to experience intermittent USB disconnects even after proper grounding, particularly when multiple peripherals share bandwidth or when high-frequency electromagnetic interference radiates from wheel motors and power supplies. Ferrite cores and shielded cables form a second line of defense that addresses noise coupling rather than static discharge alone.
Snap-on ferrite beads clamp around USB cables close to both the device connector and the host port. Choose ferrite cores rated for the frequency range you need to suppress - typically 30 - 300 MHz for USB noise - and position one bead within six inches of each end. The ferrite absorbs high-frequency currents traveling along the cable shield without affecting data signals. Two beads per cable often yield better suppression than one, and the installation takes seconds.
Shielded USB 3.0 cables with braided or foil wrapping and metal connector housings reduce the pickup of radiated interference. Standard molded cables leave the shield floating or poorly bonded at the plug, allowing noise to couple into signal pairs. Shielded variants bond the shield to the metal shell, which then contacts the port's ground when inserted. Pair shielded cables with ferrite beads for maximum effect, especially on longer runs between wheel base and PC.
Check your motherboard's USB controller assignment in Device Manager or BIOS. If multiple USB ports share an interrupt request line with your GPU or network adapter, bandwidth contention can mimic grounding faults. Move your wheel base and pedal base to ports on separate controllers - rear I/O headers often map to different hubs than front-panel connectors. This step alone has resolved intermittent dropout issues on rigs where grounding was already correct but the host system introduced latency.
These measures work best as complements to a low-impedance earth ground; they do not substitute for bonding the rig frame to mains earth or establishing a common reference plane. When static discharge paths remain open, no amount of filtering will prevent the voltage spikes that force hub resets.
What If Grounding Doesn't Solve the Problem?
If you've installed a proper ground and USB disconnects still occur, the aluminum frame is not the culprit. Start by isolating the wheel base: unplug all other USB devices except keyboard and mouse, then run a ten-minute high-torque session. If disconnects stop, a different peripheral - often a low-quality USB hub or aging game controller - is injecting noise onto the bus.
Check your power supply headroom next. A direct-drive wheel pulling 15 - 20 A during peak force feedback can cause voltage sag if your PSU sits near its rated limit or if the 12 V rail shares capacity with GPU transients. Measure 12 V rail voltage under load using HWiNFO64; consistent drops below 11.4 V suggest insufficient capacity. Upgrade to a unit with at least 100 W more headroom than your calculated peak draw.
Outdated wheel base firmware often includes USB enumeration bugs that mimic grounding issues. Visit the manufacturer's support page, compare your current firmware version against the latest release notes, and apply any updates that mention connectivity or USB stability. Reboot the base completely - power off, wait thirty seconds, power on - after flashing.
Faulty USB cables show intermittent contact rather than clean disconnects. Swap the wheel's USB cable with a known-good shielded alternative, ideally one with ferrite cores at both ends. If the wheel uses a proprietary connector, contact the manufacturer for a replacement cable before assuming the base itself is defective.
When every hardware variable is ruled out, the motherboard's USB controller may lack adequate power delivery or shielding. Try a different physical USB port - rear I/O ports fed directly by the chipset typically outperform front-panel headers. If that fails, an isolated PCIe USB card with its own power input can bypass motherboard limitations entirely.
Document each test result: which port, which firmware version, PSU model, and whether disconnects happened during specific force-feedback events or at idle. That log becomes essential if you escalate to manufacturer support or post in a dedicated sim racing hardware forum, where experienced users can spot patterns your checklist missed.
Maintaining Your Ground Connection Over Time
A properly installed ground connection will last for years, but a quick six-month inspection keeps your sim rig free from USB issues long-term. Aluminum oxidizes naturally, forming a thin surface layer that can raise resistance at connection points, so checking continuity after moving your rig or swapping major components confirms your ground path remains intact.
Use a multimeter to verify resistance between your wheel base mounting point and the main ground lug stays below one ohm. If the reading climbs, remove the ring terminals, lightly sand both the aluminum profile and the terminal contact area with 220-grit sandpaper to expose fresh metal, then re-tighten the bolts to restore full conductivity. This simple refresh takes five minutes and eliminates the most common cause of ground degradation.
Inspect wire terminals for green corrosion or loosening every six months, especially if your rig lives in a humid environment. Tighten any fasteners that have worked themselves loose from vibration, and replace crimp terminals that show fraying or oxidation at the connection point. Check your ground wire and connections every six months to catch small issues before they reintroduce static discharge problems.
Beyond periodic checks, your grounding system requires no active maintenance. Once the electrical path is secure, the setup works passively to dissipate static charge with every session, making this a one-time fix that protects your USB devices and FFB equipment for the life of your rig.
