Direct drive wheelbases generate sustained torque between 15 and 25 Nm, forces that will expose every weakness in your mounting setup. Unlike gear-driven or belt systems, direct drive units transfer force directly to the steering shaft with no mechanical buffer, which means any flex, misalignment, or looseness in the mount shows up immediately as lost detail, oscillation, or a vague connection to the road surface.
A rigid, properly aligned mount does three things: it preserves the fidelity of force feedback signals by eliminating parasitic movement, it protects both the wheelbase and the rig from stress damage caused by cyclic loading, and it prevents fasteners from walking loose during extended sessions. Aluminum profile rigs offer the stiffness and modularity needed for direct drive, but only if you match the bolt pattern correctly, apply appropriate torque to every fastener, and address flex points in the structure itself.
This guide walks through the complete installation process, from verifying your profile's load capacity and selecting compatible hardware, to torque specifications, alignment checks, and final validation. The goal is a mount that feels like a single piece of metal, with no perceptible play and no maintenance drift over time.
Understanding Mounting Patterns: Front-Mount vs. Side-Mount vs. Bottom-Mount
Direct drive wheelbases attach to aluminum profile rigs using one of three primary orientations, each with distinct structural and ergonomic trade-offs. Understanding these mounting patterns helps you select the configuration that balances rigidity, desk clearance, and compatibility with your wheelbase's bolt-hole layout.
Front-mount configurations bolt the wheelbase directly to vertical uprights or a dedicated mounting plate facing the driver. This is the most common method and typically offers the best rigidity because forces travel straight into the aluminum extrusion with minimal leverage. Most wheelbases use a four-bolt square or rectangular pattern - common spacings include 70 mm and 80 mm center-to-center - so verify your wheelbase's exact pattern before drilling or ordering a mounting plate. Front-mount setups keep the motor assembly close to the structure, reducing flex under high torque.
Side-mount orientations rotate the wheelbase 90 degrees and attach it to horizontal or vertical profile sections using an adapter bracket. This approach can save desk depth or lower the wheel height, but it introduces a longer moment arm between the motor and the frame. That extra leverage can amplify vibration and flex, especially with higher-torque units, so side-mount brackets need to be thick, well-gusseted steel or aluminum. Compatibility becomes more complex here because not all wheelbases expose mounting holes on the side casing, and you may need a brand-specific adapter to translate the bolt pattern.
Bottom-mount configurations invert the wheelbase and secure it underneath a horizontal deck or crossbar. This lowers the overall wheel height and can improve sightlines to a monitor, but it requires adequate clearance below the mounting surface for the motor housing and cables. Like side-mount setups, bottom-mount adapters must handle cantilevered loads, so look for reinforced brackets that spread stress across multiple profile slots or T-nuts. Some wheelbases ship with bottom-mount holes; others require aftermarket plates designed for inverted installation.
Bolt-hole spacing and thread type vary by brand. Fanatec and Thrustmaster units often use metric M6 or M8 bolts on 70 mm patterns, while Simagic and Simucube bases may use 80 mm or proprietary layouts. Always consult your wheelbase manual for the official pattern before fabricating or purchasing a mount. Mismatched hole spacing forces you into slotted adapters or custom drilling, both of which can introduce play if not executed carefully.
Choose front-mount when maximum rigidity and simplicity matter most. Use side-mount or bottom-mount when space constraints or ergonomic preferences outweigh the need for absolute stiffness, and budget for a quality adapter bracket to preserve as much rigidity as possible.
Selecting the Correct Fasteners and T-Nuts for Your Extrusion Profile
The fasteners you choose determine whether your direct drive wheelbase stays rock-solid or gradually loosens under the cyclic stress of heavy force feedback. Most aluminum extrusion profiles use either M6 or M8 T-slot channels, and matching your hardware to the slot size and wheelbase mounting pattern is the first critical step.
M6 fasteners work for lighter direct drive units up to about 8 Nm, but most modern wheelbases generating 12 Nm or higher demand M8 bolts for adequate clamping force and thread engagement. Check your wheelbase mounting holes: if they accept M8, use M8. Undersizing the bolt diameter leaves less material to resist shear and bending loads during hard cornering inputs.
Thread engagement depth matters more than most builders realize. A minimum of 1.5 times the bolt diameter ensures the load distributes across enough threads to prevent stripping. For an M8 bolt, that means at least 12 mm of engagement into the T-nut. Shallow engagement concentrates stress on the first few threads and leads to pull-out or thread failure over time.
T-nut style affects both installation ease and long-term stability. Drop-in T-nuts slide into an open slot end and rotate into position, making them convenient for builds where you can access the extrusion end. Slide-in nuts require the slot to be clear along the entire length, which often isn't practical after partial assembly. Hammer nuts tap directly into the slot from the side and lock with a spring ball, allowing you to add or reposition fasteners without disassembling the frame. For direct drive mounts, hammer nuts offer the best combination of accessibility and hold strength.
Material grade separates reliable hardware from fasteners that deform under load. Cheap zinc-plated mild steel bolts and T-nuts fatigue quickly under the constant reversing forces a direct drive wheelbase produces. Each steering input cycles the joint, and low-grade hardware creeps, loosens, or cracks within months. Stainless steel (304 or 316) resists corrosion and handles repeated loading without yielding, while high-grade alloy steel (class 8.8 or 10.9) provides even greater tensile strength for maximum clamping force. Invest in socket-head cap screws rather than button-head or countersunk styles; the larger head contact area and deeper hex socket reduce cam-out and allow higher torque application.
Using the correct fastener type and grade eliminates the most common failure modes in direct drive mounts: loosening from vibration, thread stripping from insufficient engagement, and hardware deformation from inadequate material strength. Match your bolt diameter to your wheelbase and extrusion, ensure proper thread depth, choose the T-nut style that fits your frame access, and select stainless or high-grade steel hardware designed for cyclic loading.

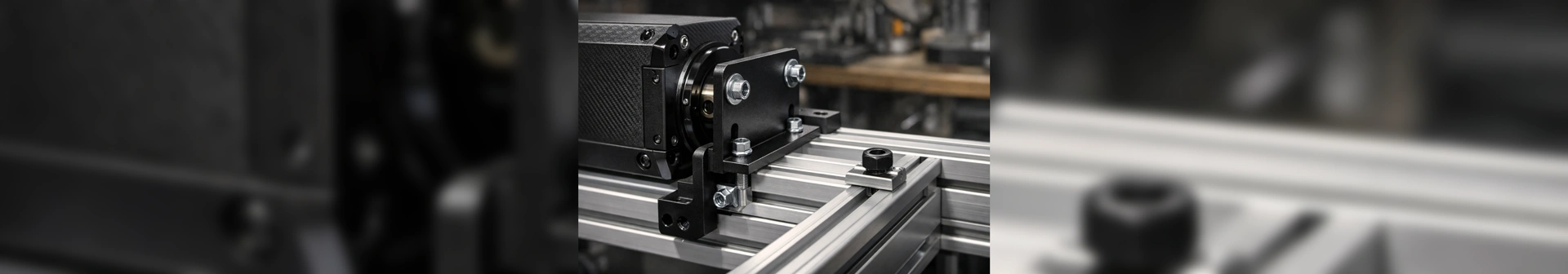

Step-by-Step: Attaching Your Wheelbase to the Aluminum Profile
Position your T-nuts in the extrusion slots before you bring the wheelbase anywhere near the rig. Sliding them into place while the bracket is mounted creates frustration and misalignment. Once the T-nuts are in the correct slots, lift the wheelbase mounting bracket into place and check that every hole lines up with a T-nut below. If even one hole is off, stop and reposition the T-nuts now.
Insert all bolts finger-tight first. This dry-fit step catches misalignment before you apply real force. With every bolt started, use a measuring tape or caliper to confirm the wheelbase sits centered on the rig and parallel to the front edge of the profile. Small angular errors multiply once you add a steering wheel, so a few seconds with a straightedge here saves headaches later.
Tighten bolts in a cross pattern, not in a circle. Start with the bolt at the top left, move to bottom right, then top right, then bottom left. This sequence pulls the bracket down evenly and prevents warping. Most M6 bolts call for 8-12 Nm of torque, while M8 hardware typically needs 12-18 Nm. Check your wheelbase manual for the exact specification, and use a torque wrench to hit that number on every bolt.
After the first pass, go around the cross pattern a second time to verify each bolt still meets spec. Aluminum extrusions can flex slightly during initial tightening, and a second pass ensures uniform clamping force. When finished, the bracket should sit flush against the profile with no visible gaps or movement when you press down on the wheelbase.
Achieving Perfect Alignment: Setting Wheel Height and Angle
Wheel height and angle directly affect comfort, control precision, and how long you can drive without fatigue. Once your wheelbase is mechanically secure, position the wheel centerline 10 - 20 mm below your shoulder height when seated in your normal driving position. This range keeps your arms slightly bent and shoulders relaxed, reducing strain during longer sessions.
To measure accurately, sit in your rig and mark the height of your shoulder on a vertical reference point, such as the monitor mount or side profile. The wheel centerline should fall just below that mark. If your wheelbase is mounted too high, your shoulders will lift and tire quickly; too low, and you'll hunch forward, losing leverage and sightline clarity.
Rake angle - the forward or backward tilt of the wheelbase - typically ranges from 0 to 15 degrees. A small amount of rake, around 5 - 10 degrees, mimics the angled steering column found in most road and race cars, improving the natural hand and wrist position. Excessive rake can place undue stress on USB and power cables, especially if they exit the rear of the unit. Check cable routing at your chosen angle before final tightening.
Adjust extrusion position by loosening the mounting bolts, sliding or tilting the plate, then retightening to spec. Verify that your view of the monitor remains unobstructed and that the wheel rim does not clip the edge of your screen at full lock. If your rig uses a fixed seat position, you may need to move the wheelbase forward or back along the profile to achieve the correct distance - your elbows should maintain a slight bend even with arms extended at the nine and three o'clock positions.
A final sightline check ensures the top of the wheel rim sits below your natural eye level to the center of the monitor. This keeps critical HUD elements and track references visible without head movement. Small adjustments now prevent ergonomic compromises that become obvious only after extended use.
Torque Specifications and Final Checks: Eliminating Flex and Ensuring Safety
Aluminum extrusion frames require precise torque values to maintain structural integrity without damaging threads or brackets. M6 bolts should be tightened to 8 - 10 Nm, M8 bolts to 18 - 22 Nm, and M10 bolts to 35 - 40 Nm when securing wheelbases or mounting brackets. Under-torquing allows fasteners to loosen during high-force inputs, creating rattles or dangerous sudden shifts mid-corner. Over-torquing strips the softer aluminum threads or cracks steel brackets, particularly at stress concentration points near bracket edges.
After installation, perform a flex test before powering on the wheelbase. Grip the steering wheel and apply moderate lateral, vertical, and rotational pressure in both directions. Watch the bracket-to-profile interface closely - zero visible movement should occur at any mounting point. If you detect flex, check that T-nuts are fully seated in the slot channels and that all bolts engage at least four full threads into the aluminum. Some budget brackets may flex under peak torque loads from high-end direct drive units; upgrading to a thicker bracket or adding gusset reinforcement solves most cases.
Re-check bolt tension after the first 10 hours of use, as aluminum can settle slightly under repeated vibration and load cycles. This second torque pass prevents creep-induced loosening that appears weeks after initial installation. Keeping a torque wrench and hex key set in your sim space makes routine checks quick and protects both your wheelbase and rig from avoidable damage or safety risks.
Cable Management Tips for a Clean and Functional Sim Rig
Once your direct drive wheelbase is bolted down and aligned, routing cables properly keeps your cockpit functional and prevents accidental damage. Power and USB cables that hang loose can snag on moving parts, create drag during steering inputs, or place strain on the wheelbase connectors every time you attach or remove a quick-release wheel.
Start by securing the main power cable and USB cable to the aluminum extrusion using reusable velcro cable ties. Run both cables along the vertical or horizontal profiles, keeping them parallel and away from any rotating or sliding components like pedal trays or seat sliders. Attach a tie every 12 to 18 inches to eliminate slack without pulling the cables taut.
Leave a service loop - about 6 to 8 inches of extra cable - near each connector on the wheelbase. This slack lets you disconnect cables for maintenance or swap wheels without tugging on the ports, which can loosen connections or damage pins over time. The loop also absorbs any minor movement if the rig shifts during aggressive driving.
For quick-release wheel cables, route them from the wheelbase connector up and around the back of the motor housing, then secure the excess to the extrusion behind the wheel mount. Avoid routing cables across the front of the wheelbase or over the steering shaft, where they can interfere with rotation or rub against moving metal.
Adhesive cable clips or cable raceways can keep smaller wires organized if you run additional accessories like button boxes or shifter cables on the same extrusion. Keep all routing accessible so you can reach connectors without removing multiple ties or clips. Clean cable management eliminates distractions, protects your equipment, and makes troubleshooting faster when you need to check a connection.
Troubleshooting Common Mounting Issues and Fixes
Bolt holes that refuse to line up usually point to incorrect bracket orientation or the extrusion sitting in the wrong T-slot channel. Rotate the mounting bracket 90 degrees and check whether your wheelbase bolt pattern matches the bracket's hole spacing. If the bracket appears correct, slide the T-slot nuts along the channel and verify the extrusion profile sits flush against the wheel deck before tightening.
Flex that persists after initial assembly indicates under-torqued fasteners or insufficient bracing. Work through every bolt and T-slot connection with your torque wrench, confirming each meets the specification for your extrusion size. If flex remains, add a horizontal brace between the uprights directly behind the wheelbase mount or install a diagonal strut to tie the wheel deck into the main chassis.
Vibration through the wheelbase often traces back to a gap between the mounting bracket and the extrusion face. Run a straightedge along the contact surface to identify any void, then insert aluminum shims in 0.5 mm increments until the bracket seats evenly. Tighten the bracket bolts in a cross pattern to distribute clamping force and recheck for movement.
Fasteners that loosen over time need either higher initial torque or thread-locking compound. Apply a medium-strength threadlocker to each bolt before installation, wait the specified cure time, and confirm your torque wrench clicks at the correct value. For T-slot nuts, verify the nut profile matches your extrusion series and that each nut rotates fully inside the channel before you apply load.
When diagnosing noise or movement, isolate the source by loosening one connection at a time while a second person applies light force to the wheelbase. The joint that allows movement when loosened is the one requiring attention. Retorque that fastener first, then move to adjacent connections, working outward until all motion disappears.
Essential Tools and Hardware You'll Need Before You Start
- Hex key set (typically 5mm, 6mm for aluminum profile bolts)
- Torque wrench (5-25 Nm range minimum)
- M6 or M8 T-nuts compatible with your extrusion slot width
- Socket-head cap screws in appropriate length (20-40mm typical)
- Flat washers to distribute clamping force
- Thread-locking compound (medium strength, removable)
