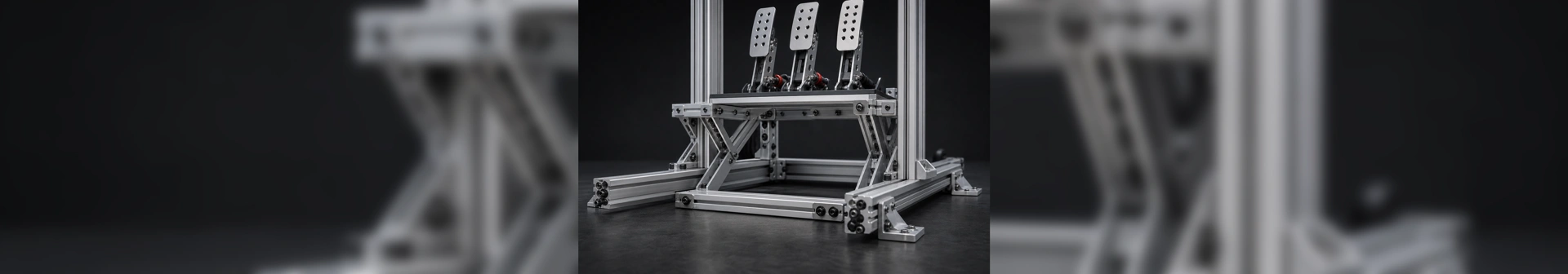

Load-cell pedals apply sustained forces often exceeding 100 kg directly to the brake pedal face, and aluminum profile sim rigs - while modular and popular - frequently flex under this load without careful structural planning. That deflection translates into inconsistent brake feel, lost precision during threshold braking, and wasted input energy absorbed by the frame instead of registered by the sensor.
This guide approaches chassis flex as a structural engineering problem. You will learn how to identify the specific deflection points in your pedal deck and base frame, apply straightforward mechanical principles to eliminate unwanted movement, and validate your results with simple load tests. The focus is exclusively on the pedal mounting zone and the sections of the rig that support it - seat mounting, monitor arms, and wheel deck are outside this scope.
Aluminum extrusion systems rely on joint rigidity and triangulation to handle point loads. When those principles are ignored or underbuilt, even heavy 80×40 mm profiles will twist or sag under hard braking. The sections that follow break down frame geometry, material cross-section, fastener selection, and bracing strategy in practical terms, so you can build or retrofit a pedal platform that stays put when you need consistency most.
Understanding Chassis Flex: Why It's the Enemy of Consistency
Chassis flex appears when the force you apply to a load-cell brake pedal causes the mounting structure to bend rather than transfer that force cleanly to the sensor. Load-cell pedals can require 60 to 150 kilograms of force at full braking, and when aluminum extrusion spans are unsupported or joints lack reinforcement, even a few millimeters of deflection will change the feel of the pedal mid-corner. That inconsistency breaks muscle memory: the same physical effort produces different braking results lap after lap.
The flex typically concentrates at two points. The first is the pedal plate-to-upright joint, where horizontal and vertical profiles meet at a right angle. If that corner relies only on a single t-nut connection or thin brackets, the moment arm created by your leg force will lever the joint open slightly under load. The second common failure zone is any horizontal span longer than about 400 millimeters without intermediate vertical support, especially when the extrusion cross-section is lightweight or the wall thickness is below 3 millimeters.
Material deflection follows basic beam mechanics: longer unsupported lengths and thinner walls increase flex exponentially, not linearly. A 500-millimeter span of 40×40 profile will deflect far more than two 250-millimeter spans separated by a center brace, even though the total length is identical. Recognizing that geometry and connection rigidity matter more than profile size alone is the foundation of any flex-elimination strategy.
Identifying the Common Causes of Pedal Deck Flex
Pedal deck flex in aluminum profile rigs almost always traces back to one or more structural compromises made during the initial build. The most common culprit is single-plane mounting: the pedal plate connects to vertical uprights with horizontal extrusions alone, forming a rectangle that can rack under force. Without diagonal bracing or triangulation, even a modest 30 - 40 kg brake load will cause the uprights to rotate at their base joints, translating that motion into perceptible deck movement.
Thin-wall extrusion compounds the problem. Many entry-level rigs use 20 × 20 mm or 20 × 40 mm profiles for the pedal deck, which deflect measurably under concentrated load-cell pressure. Upgrading to 40 × 40 mm or 40 × 80 mm series extrusion increases section modulus and significantly reduces bending. If your deck uses profiles smaller than 40 mm on any axis, that's a leading indicator of flex vulnerability.
Fastener count and joint geometry matter more than most builders realize. A single T-nut or corner bracket at each connection leaves the joint free to pivot. Four-point connections - two fasteners per face, offset along the length of the extrusion - distribute shear load and resist rotation. Missing gussets, cross-members, or knee braces between the pedal deck and seat frame allow unsupported spans to act as cantilevers, amplifying deflection at the pedal face.
To audit your own rig, push the brake pedal hard with your hand while watching the uprights and horizontal members. Visible rotation at the base joints, horizontal movement of the uprights, or sagging of the pedal plate all point to inadequate triangulation or undersized extrusion. Check fastener spacing: connections spaced farther than 150 mm apart on a loaded member typically require intermediate support or additional hardware to maintain rigidity.
Solution 1: Reinforcing Your Pedal Plate with Brackets and Gussets
Angular brackets and gussets transform the pedal-plate junction from a simple butt joint into a moment-resistant structure that distributes braking force across multiple fasteners and planes. Steel L-brackets in 3 - 5 mm thickness outperform aluminum equivalents because steel's higher modulus of elasticity resists bending under the 90+ kg peak loads typical of high-end load-cell pedals. Mount one bracket on each side of the pedal plate where it meets the vertical upright, positioning the horizontal leg flush against the underside of the plate and the vertical leg flat against the profile face.
Use ISO grade 8.8 or higher bolts - M6 or M8 depending on your bracket holes - and pair them with drop-in or roll-in T-nuts that engage at least two full profile channels. Shallow T-nut engagement allows the fastener to pivot under load, which defeats the purpose of the bracket. Torque fasteners to 8 - 10 Nm for M6 and 15 - 18 Nm for M8; over-tightening deforms the aluminum profile walls and reduces clamping force. If your pedal plate uses a cantilever design with the mounting face several centimeters forward of the upright, add a third gusset at a 45-degree angle between the plate and upright to counteract the rearward moment arm created by your heel pressure.
Bracket placement matters as much as material choice. Position the gussets to resist the dominant load vector - rearward and slightly downward during heavy braking - rather than centering them purely for symmetry. A bracket installed too far inboard does little to prevent the outer edges of the plate from twisting. For pedal decks wider than 400 mm, consider four brackets in a rectangular pattern rather than two, especially if you run inverted pedal sets where the load cell sits above the mounting plane and amplifies torsional stress.
Solution 2: Using Thicker Aluminum Profiles for the Base Structure
The cross-sectional dimensions of aluminum extrusion profiles directly determine bending resistance under pedal load. A 20 mm series profile has a significantly lower second moment of area than a 40 mm or 45 mm profile, meaning it will deflect more under the same force. When a load-cell pedal applies 90 - 120 kg of brake force to a pedal deck mounted on 20 mm horizontal rails, the smaller profile flexes visibly, undermining the precision feedback that load-cell systems are designed to deliver.
Bending resistance scales with the cube of the profile height in the load direction. A 40 mm series profile offers roughly eight times the stiffness of a 20 mm profile of similar wall thickness, and a 45 mm series provides even greater rigidity. This difference becomes critical when the pedal deck spans more than 400 mm between vertical supports or when heavy three-pedal sets concentrate force on a narrow footprint.
If you are building a new rig, specify 40 mm or 45 mm series profiles for the base frame rails and the vertical uprights that carry pedal-deck loads. The additional cost is modest compared to the performance gain, and the larger T-slots accept heavier-duty fasteners and brackets without thread-stripping risk. For an existing 20 mm rig, retrofitting means either replacing the entire base structure or adding a parallel reinforcement profile bolted alongside the original rail. The parallel method doubles the effective cross-section and can cut deflection by more than half, though it adds weight and requires careful alignment to distribute load evenly across both profiles.
Wall thickness also matters: economy extrusions with 1.5 mm walls will still flex under high load even in 40 mm format. Look for profiles with 2 mm or thicker walls, particularly in the lower rail that anchors the pedal deck. Heavier-gauge material resists both bending and local deformation at fastener points, keeping the mounting surface stable over time.
Solution 3: Advanced Techniques for Maximum Rigidity
Triangulation transforms a flexible rectangular frame into a rigid truss by adding diagonal members that lock the geometry in place. When you mount a diagonal cross-member between the pedal deck and the rear base rail, you create triangles that cannot deform under load without bending the extrusion itself - an order of magnitude stiffer than relying on fastener friction alone. This principle is borrowed directly from structural engineering and is the most effective single step you can take to eliminate chassis flex under high brake forces.
Start by identifying the unsupported spans in your pedal deck. If the deck runs more than 400 mm without intermediate support, a diagonal brace connecting the deck to the rear or side rail will halve that effective span and reduce deflection by up to 75 percent. Position the diagonal so it meets the deck at or near the load-cell mounting point, directing force into the main frame rather than cantilevering the deck. A single 40×40 mm extrusion cut to length and fastened with M8 T-nuts at both ends is typically sufficient for single-pedal setups; three-pedal trays benefit from two diagonals forming an X or V pattern.
Cross-members placed horizontally beneath the pedal deck achieve a similar result by shortening the free span between vertical uprights. If your rig has vertical posts supporting the deck at each corner, a horizontal member running front-to-back under the tray turns a single long beam into two shorter, stiffer segments. Use the same extrusion profile as your main frame to maintain compatibility with existing T-nuts and brackets.
Corner brackets and joining plates upgradebolted connections into rigid multi-plane joints. Standard 90-degree corner brackets with gussets distribute shear load across a larger area and prevent the slight rotation that leads to felt flex. Flat joining plates that span across two or more extrusions and attach with multiple fasteners create a composite structure that behaves as a single rigid body. When adding these reinforcements, ensure that at least two fasteners engage each extrusion to prevent pivoting.
Practical constraints matter: diagonal braces must clear your feet during pedal travel, especially if you heel-and-toe or use a clutch. Route cables before installing cross-members to avoid pinching wires between extrusions and the floor. If your seat slides fore and aft, verify that new bracing does not interfere with the slider's full range of motion. Measure twice, because removing and repositioning an installed diagonal is more time-consuming than planning clearance up front.
Triangulation and cross-bracing work together. A triangulated pedal deck supported by a horizontal cross-member and anchored with gusseted corner brackets will deliver near-zero perceptible flex under loads exceeding 150 kg, even on a budget aluminum profile rig.
Hardware Matters: Choosing the Right Bolts, T-Nuts, and Mounting Plates
Fastener selection directly determines whether your pedal mounting joints will stay tight under repeated 100+ kg brake forces or gradually loosen and flex. The aluminum T-slot extrusions common in sim rigs rely on mechanical clamping rather than welding, so every bolt and T-nut becomes a critical structural connection.
Start with ISO property class 8.8 bolts at minimum for any joint that sees pedal force. Grade 8.8 steel fasteners offer 800 MPa tensile strength and will not yield under the clamping loads required to keep pedal decks rigid. M8 bolts are the most common size for 40-series and 45-series profile, providing adequate thread engagement and clamping surface without requiring excessive torque. Bolt length matters: you need at least 1.5 times the bolt diameter of full thread engagement inside the T-nut to prevent gradual backing-out under vibration. For an M8 fastener, that means at least 12 mm of thread inside the nut after passing through mounting plates and profile walls.
T-nut type changes how easily you can add or adjust bracing after your rig is assembled. Spring-loaded drop-in T-nuts slide into the slot from an open end and stay in place with internal springs, making initial assembly straightforward. Roll-in T-nuts can be inserted anywhere along a closed slot by rotating them 90 degrees, which is essential when retrofitting cross-braces or gussets to an existing frame. Both styles work equally well under load once tightened, but roll-in nuts give you flexibility to strengthen problem areas without disassembling the entire pedal deck.
Backing plates distribute pedal mounting forces across a wider area of the extrusion face, reducing localized bending at the bolt holes. A 3 mm steel plate spanning at least two T-slot channels under your pedal base will prevent the thin aluminum walls from dimpling inward when you apply maximum brake pressure. This is especially important on 40 mm profiles with thinner wall sections. The plate also provides a flat, stable reference surface if your pedal base has slotted mounting holes for adjustment.
Thread-locking compounds prevent fasteners from loosening under vibration and repeated load cycles. A medium-strength threadlocker (Loctite 243 or equivalent) allows future disassembly with hand tools while keeping joints secure during hard braking sessions. Apply a small drop to the bolt threads before final tightening, and allow 24 hours for full cure before putting maximum force through the pedals. Avoid high-strength formulas unless you plan never to adjust or remove the pedals, since they require heat to break the bond.
Proper torque matters as much as fastener grade. Under-tightened bolts allow micro-movement that wears the T-nut serrations and creates progressive slack; over-tightening can strip threads in aluminum or deform the profile walls. For M8 grade 8.8 bolts in standard T-nuts, 15 - 20 Nm provides reliable clamping without risk of damage. Use a torque wrench or hex driver for the initial installation, then re-check all pedal-deck fasteners after the first few driving sessions as the joints settle under load.
Testing Your Setup: How to Properly Check for Flex Before You Race
- Apply full braking force while a second person observes the pedal deck and upright joints from the side
- Check for movement or gap opening at the pedal plate-to-upright connection under load
- Listen for creaking or clicking sounds that indicate fastener slip or joint movement
- Measure pedal deck height at rest and under maximum force with a caliper or ruler to quantify deflection
- Test on a hard surface rather than carpet to eliminate floor compliance as a variable
- Re-torque all fasteners after the first session, as initial loading can seat components and reduce preload
Conclusion: The Payoff of a Rock-Solid Sim Racing Cockpit
A sim rig that flexes under load-cell brake pressure costs you lap time and consistency. Every millimeter of compliance in the pedal deck translates to uncertainty in brake modulation, making it harder to repeat the same input lap after lap. The solution hierarchy is straightforward: begin with stronger mounting brackets and grade-8 fasteners, verify that your profile joints are tight and properly aligned, then add triangulation or thicker extrusions if flex persists under your specific pedal loads.
Most aluminum profile rigs can be made sufficiently rigid with a combination of 90-degree angle brackets behind the pedal plate, cross-bracing in the vertical plane, and a profile thickness matched to pedal force. Higher-force pedals - those calibrated above 80 kg brake load - will generally require 40-series or 45-series profiles and more aggressive triangulation. Lower-force pedals may be adequately supported by well-braced 30-series or 4040 profiles.
The performance improvement is immediate: a non-compliant pedal deck lets you apply the same physical force and receive the same digital input every time, which directly improves trail-braking consistency and confidence at threshold. This isn't a marginal upgrade - structural integrity affects every braking zone in every session.
Treat chassis stiffness as a one-time investment. A properly braced aluminum profile rig will support every future pedal, wheel base, and accessory upgrade without requiring a rebuild. The time spent measuring deflection, adding triangulation, and upgrading fasteners pays dividends in every lap you drive.
